DIN Rail Terminal Box Product Overview
This DIN rail-mounted fiber optic terminal box features a rugged steel enclosure and serves as a professional fiber management device. It is widely applied in industrial control cabinets, data centers and communication equipment rooms, enabling safe cable storage, efficient fiber termination, fusion splicing and patch cord distribution.
Pre-installed with 6 LC/UPC duplex adapters, it supports high-density wiring for 12 optical fibers. With a compact structure, it is fully compatible with standard 35mm DIN rail mounting.
|
Parameter |
Details |
|
Fiber Type |
Single-mode (G.652D/G.657A2) & Multimode (OM1/OM2/OM3/OM4) |
|
Housing Material |
Cold-rolled Steel, Powder-coated |
|
Dimensions (W×H×D) |
Approx. 40-52 × 130 × 115 mm |
|
Mounting |
Standard 35mm DIN Rail |
|
Protection Class |
IP20 (IEC 60529) |
|
Operating Temperature |
-25°C ~ +70°C |
|
Storage Temperature |
-40°C ~ +85°C |
|
Insertion Loss |
≤ 0.3 dB (per adapter) |
|
Return Loss |
≥ 50 dB (UPC) |
|
Durability |
≥ 500 mating cycles |
|
Cable Gland |
2 x PG11 (for Ø6-12mm cables) |

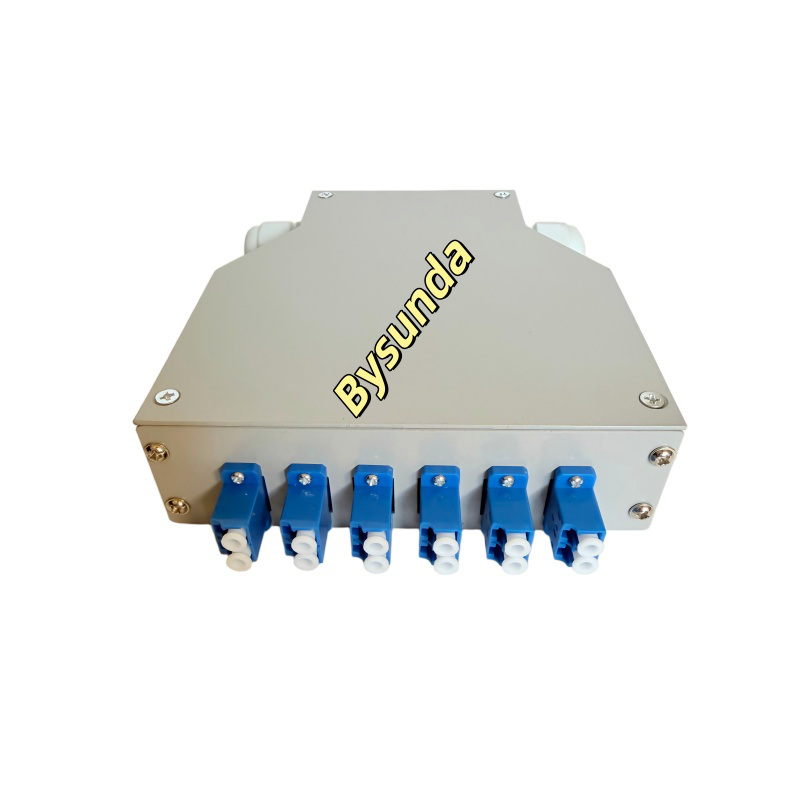

DIN Rail Terminal Box 6 Port LC/UPC DUPLEX (Steel Box) Features
High-strength steel enclosure: Adopts cold-rolled steel housing with electrostatic powder spraying technology, featuring high sturdiness, excellent corrosion resistance and reliable EMI shielding performance.
High-density wiring layout: Equipped with 6 LC/UPC duplex adapters, supporting up to 12 fibers and compatible with both single-mode and multimode optical fibers.

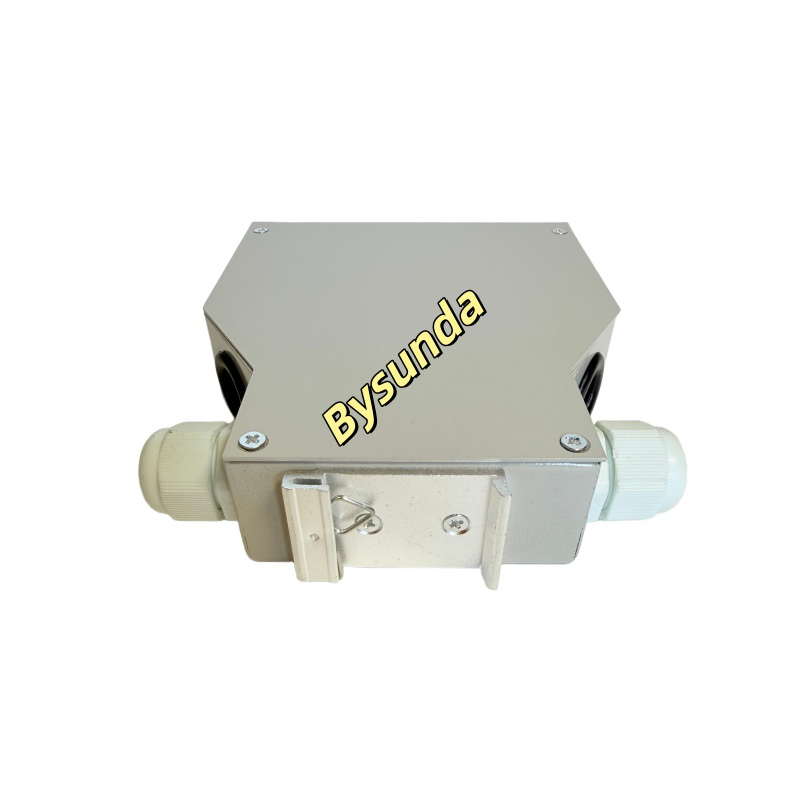

DIN rail mounting: Supports quick snap-on installation on standard 35mm DIN rails, with versatile mounting options for rear and side installation.

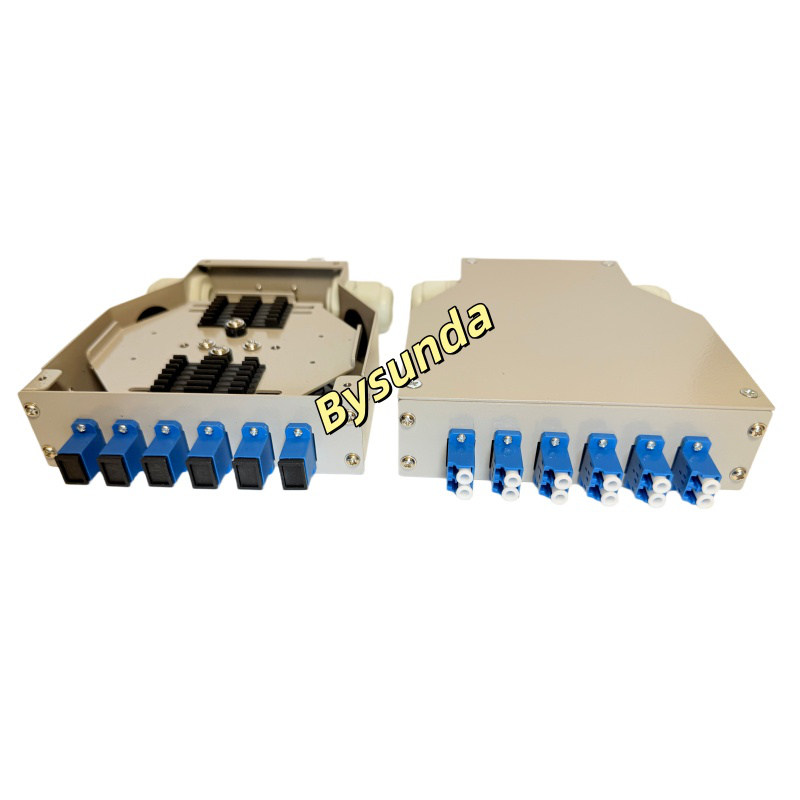

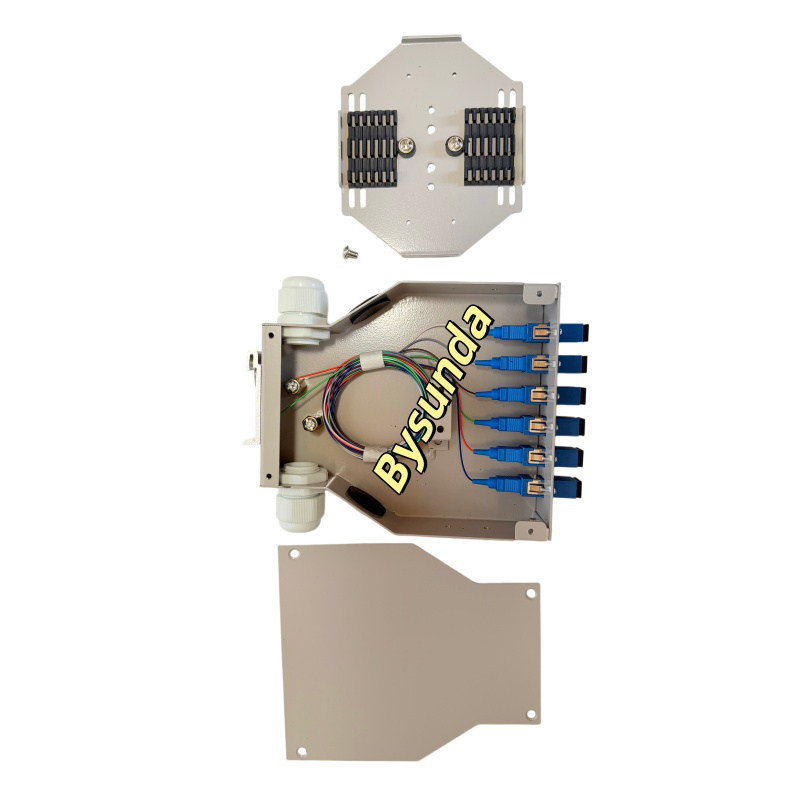

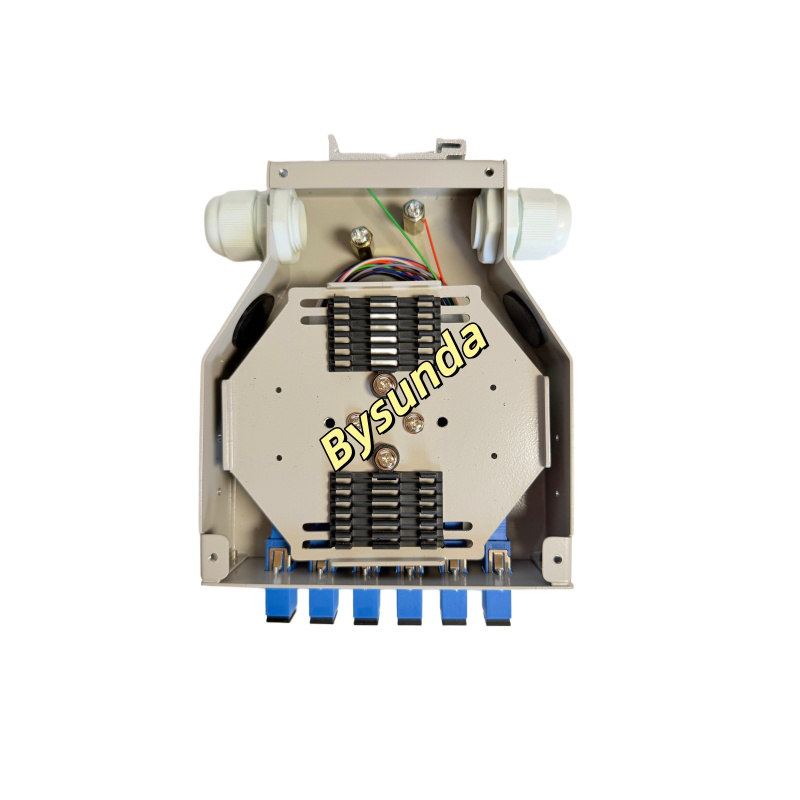

Integrated fiber splicing management: Built-in dedicated splice tray and fiber fixing clips, capable of holding and managing 12-core fused fibers.
Protected cable entry: Fitted with two PG11 cable glands for effective strain relief, with an IP20 protection rating.
Compact structure: Space-saving and miniaturized design, perfectly suitable for high-density integrated cabinet installation.
Wide temperature operation: Ensures stable operation in harsh industrial environments ranging from -25℃ to +70℃.
Standard color: Industrial light grey (RAL 7035).
Applications
a. Telecommunication Rooms & Data Centers
b. Fiber To The Home (FTTH) / Fiber To The Premises (FTTP)
c. CATV & Broadcast Networks
d. Power & Utility Communication Cabinets
e. Industrial Automation & Control Systems
