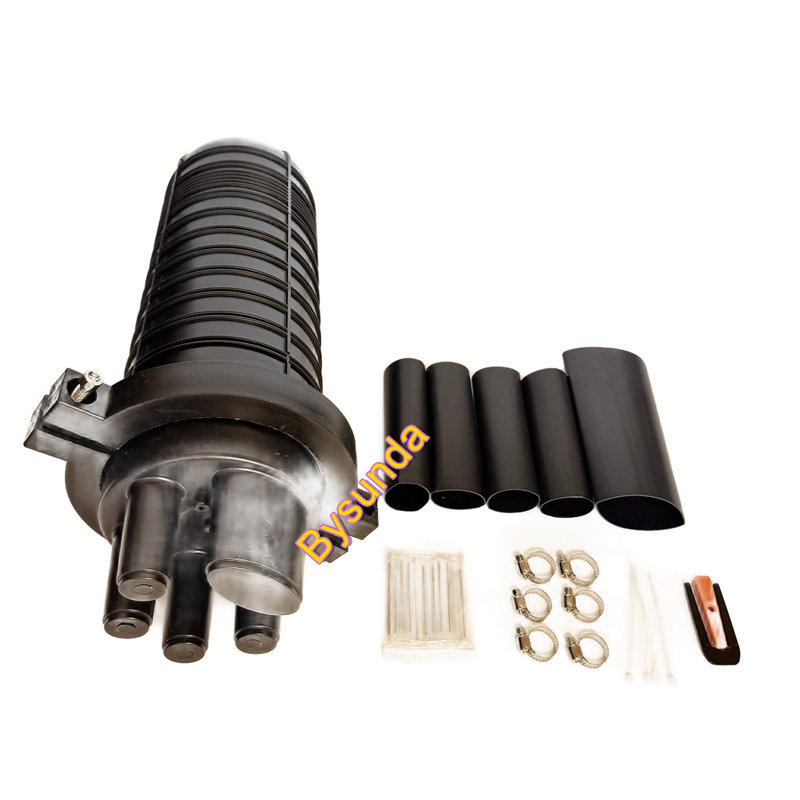

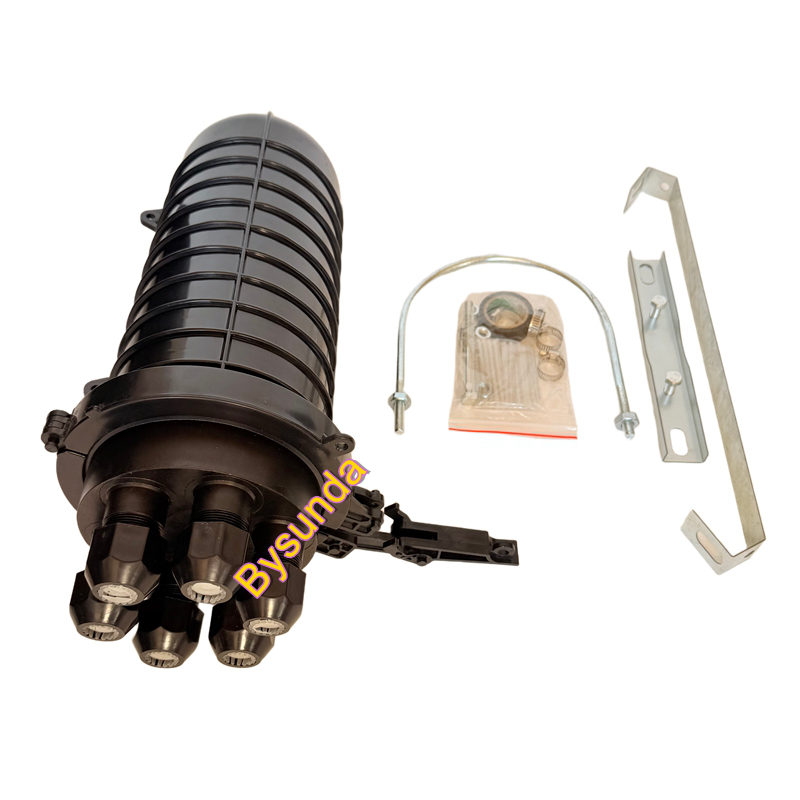

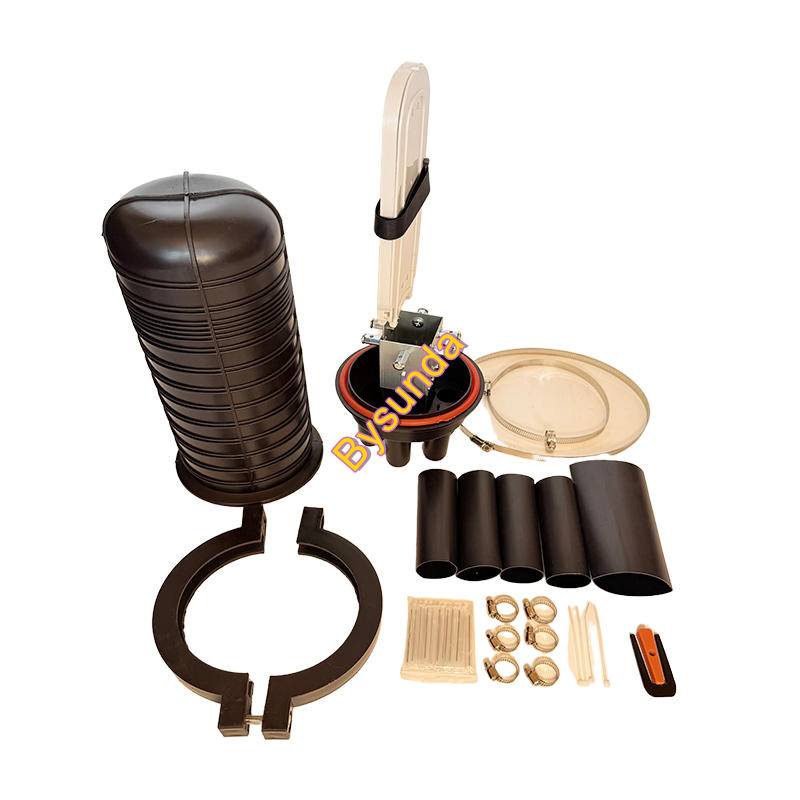

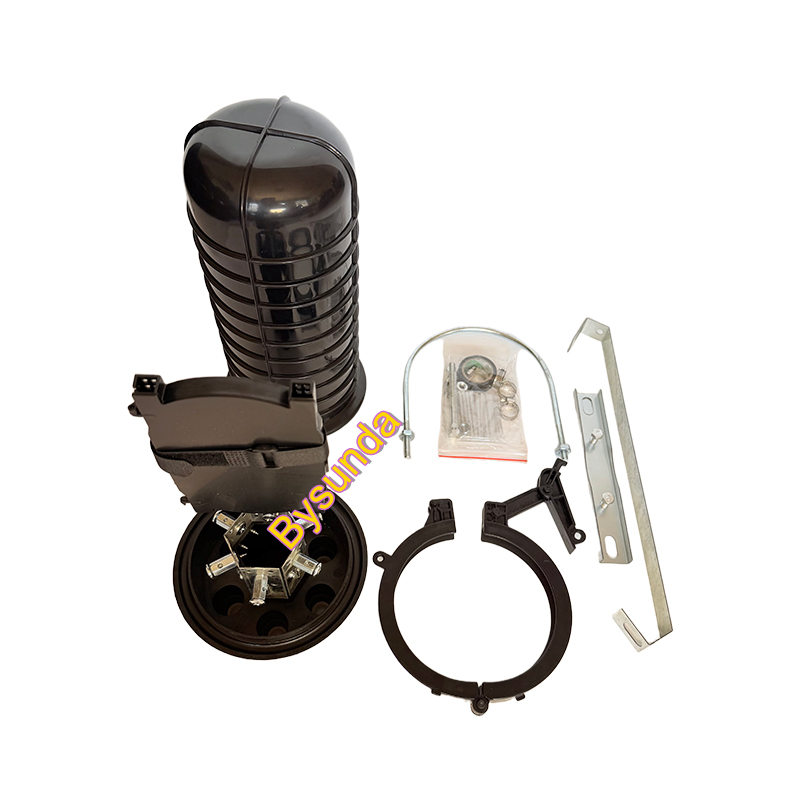

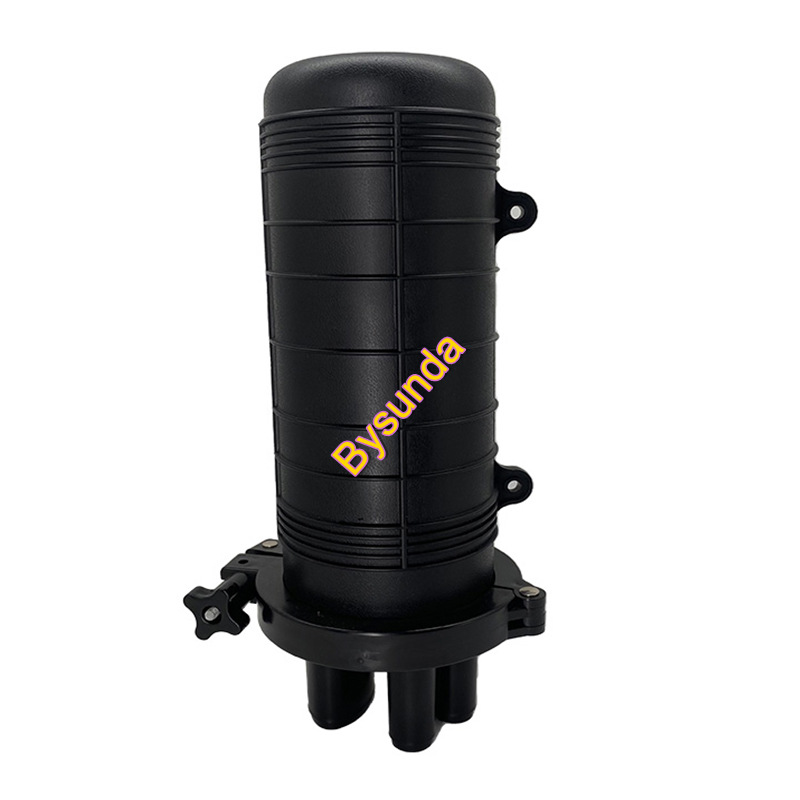

Description of Dome Fiber Optic Splice Closure
The fiber optic spice closure is a connection device that realizes that two optical fibers are permanently or inseparably connected together and has a projectile.Dome type vertical fiber optic splice closure are made of high density reinforced PC material. Different ports type are available,fittings an different fiber optic core numbers for horizontal/dome fiber optic splice closure.
Dome fiber optic splice closure are suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, direct buried fiber optic cable projects.
Dome Fiber Optic Splice Closure Technical Parameters:
|

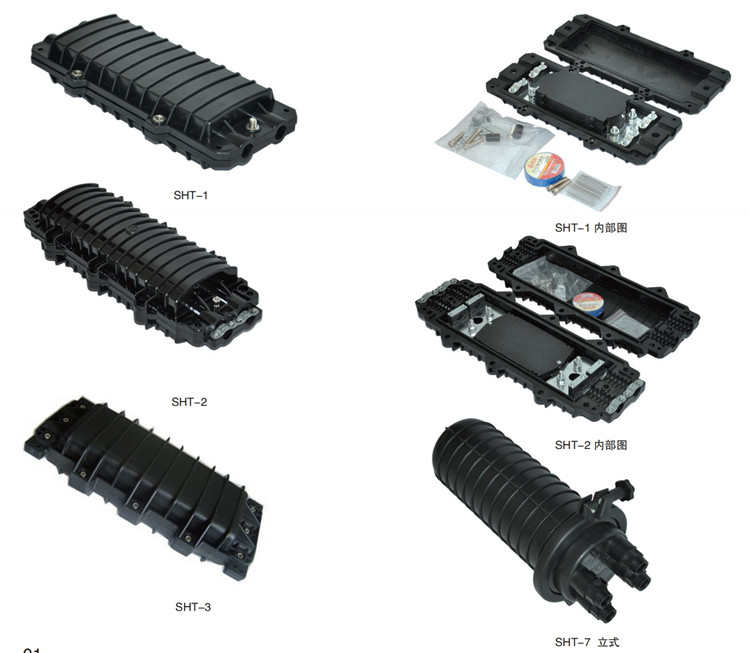

Product Name |
Product item |
Size(HxWxD) |
Number of incoming and outgoing cables |
Maximum capacity |
|
Fiber Optic Splice Closure |
Horzontal SHT-1 |
320*125*70 mm |
Two in two out |
48 core |
|
Horzontal SHT-2 |
420*140*100mm |
Two in two out |
144 core |
|
|
Horzontal SHT-3 |
430*150*110mm |
Two in two out |
144 core |
|
|

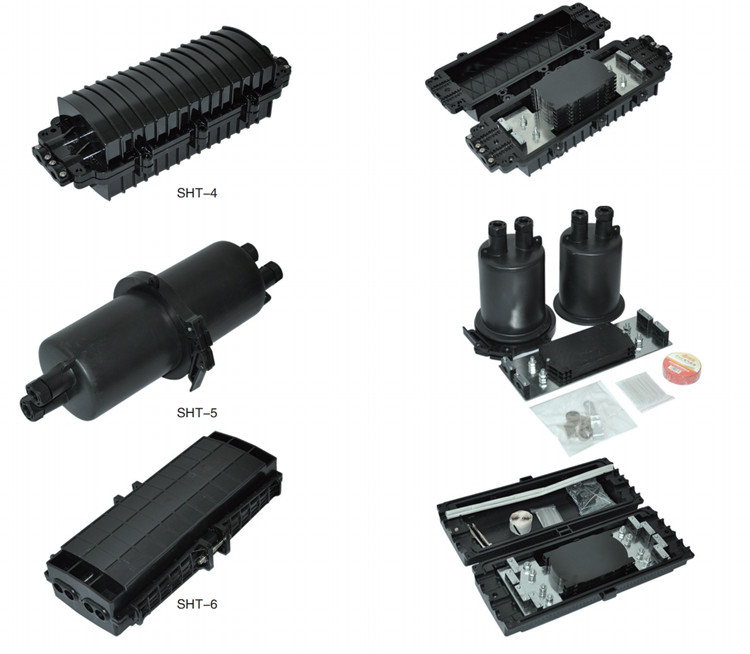

Horzontal SHT-4 |
480*150*200mm |
Two in two out |
200 core |
|
|
Cylindrical SHT-5 |
430*125mm |
Two in two out |
72 core |
|
|
Horizontal SHT-6 |
420*145*110mm |
Two in two out Three in three out Four in four out |
144 core |
|
|
Vertical SHT-7 |
440*140mm |
Two in two out |
72 core |
The dome fiber optic splice closure family includes five distinct sizes that fit most brand splicing configurations, enviroments, and applications. Because they are constructed of a highly chemical-resistant material, they can be deployed in most environments: such as undergroud, buried, and aerial and so on. Their compact design allows the FDCS to be placed in the smallest pedestals and handholes.
Features:
It had the function of unbreaking core passage(opening the skylight),can be used repeatedly, the box body adopts new PC material, and the metal parts adopt stainless stell splice try with superimposed structure, flexible configuration an convenient installation. Suitable for beam-type cable and ribbon cable sealing measures using mechanical or heat shrinking, excellent sealing effect.
