Product Description

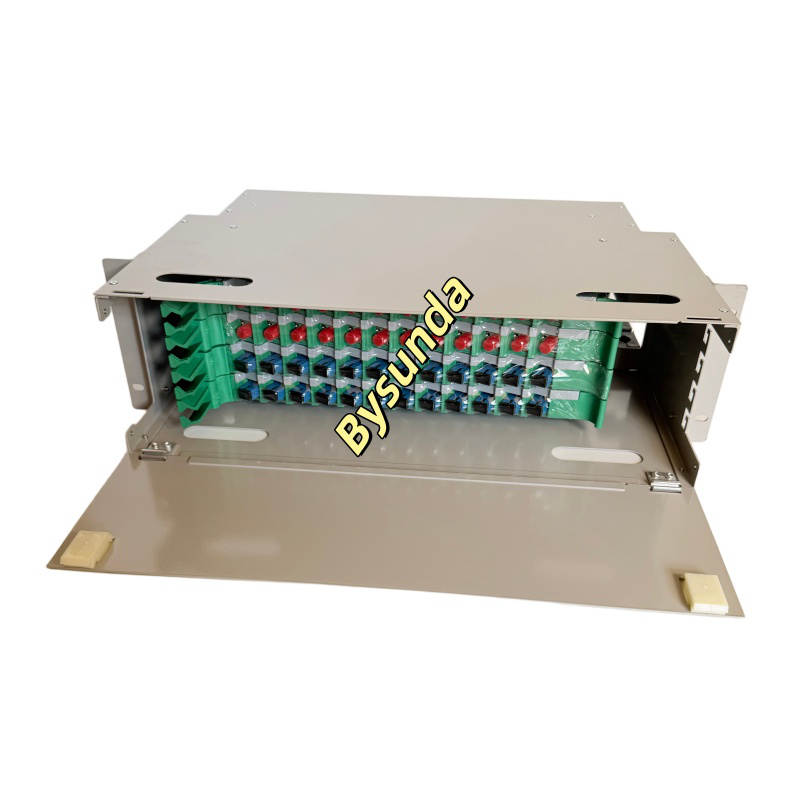

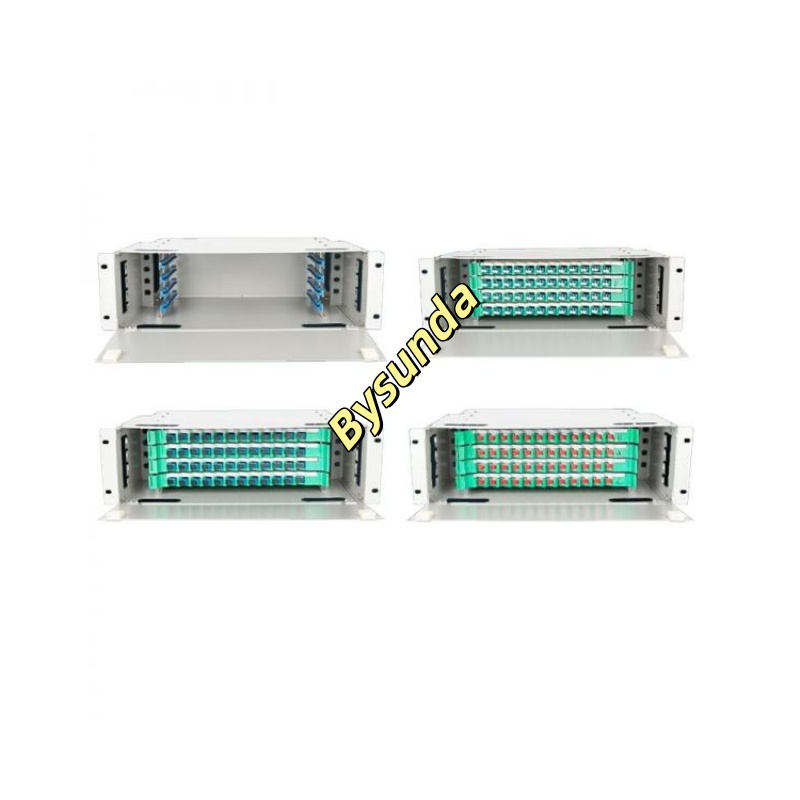

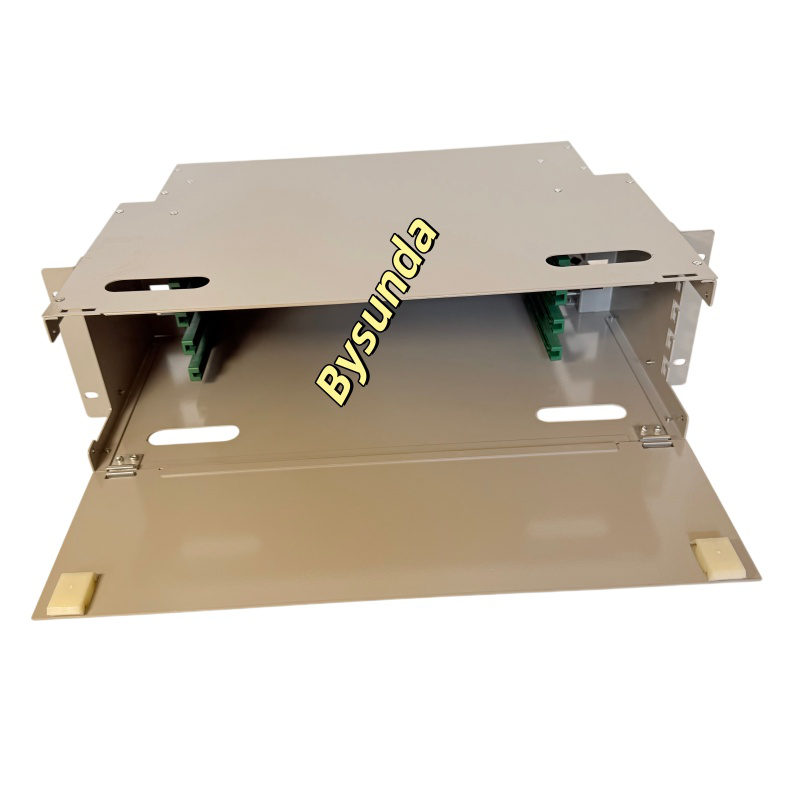

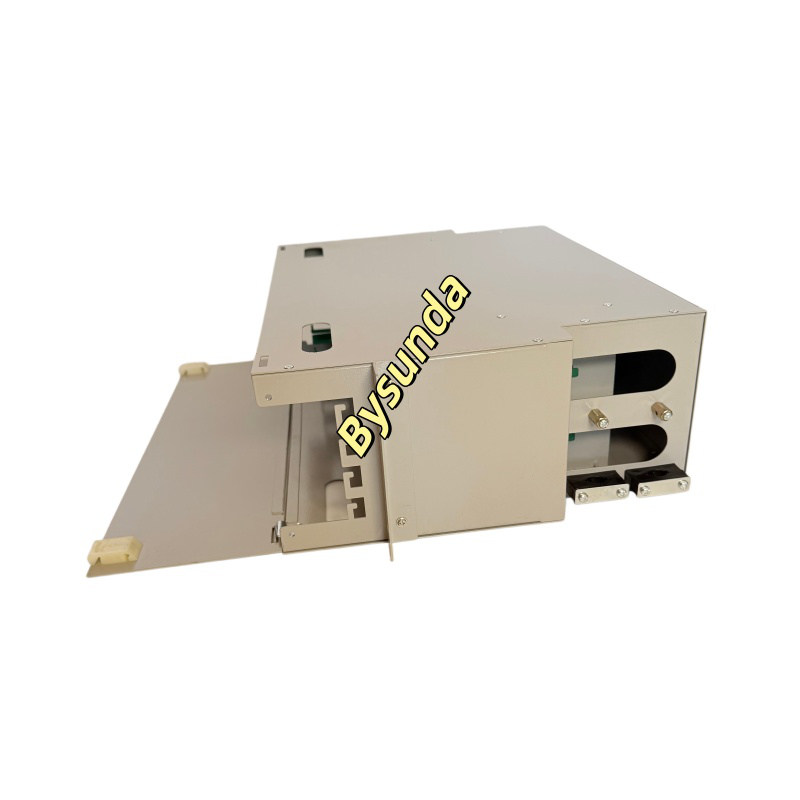

ODF Unit Box (Optical Distribution Frame Unit Box) is a standard 19-inch rack-mounted optical distribution device, applied for the termination, splicing, distribution and routing of optical cables in fiber communication equipment rooms.
ODF Unit Box Functions
- Cable Fastening & Protection: Anchors optical cable sheaths and reinforcing components, offers grounding shielding, and protects fine fiber cores from physical abrasion and damage.
- Fiber Jointing & Reserve Housing: Connects optical fibers with pigtails through splicing work, and stores spare fiber in tidy coils, meeting the 1.6m minimum residual length requirement.
- Optical Circuit Deployment: Allows flexible fiber linking, cross-connection and signal testing by flange adapters for convenient line scheduling.
- Integrated Cable Arrangement: Enables compact and standardized management of bulk fiber ports, greatly easing daily upkeep, upgrade expansion and malfunction inspection.
ODF Unit Box Features
- 19' standard installation interface, surface electrostatic spray, beautiful and generous.

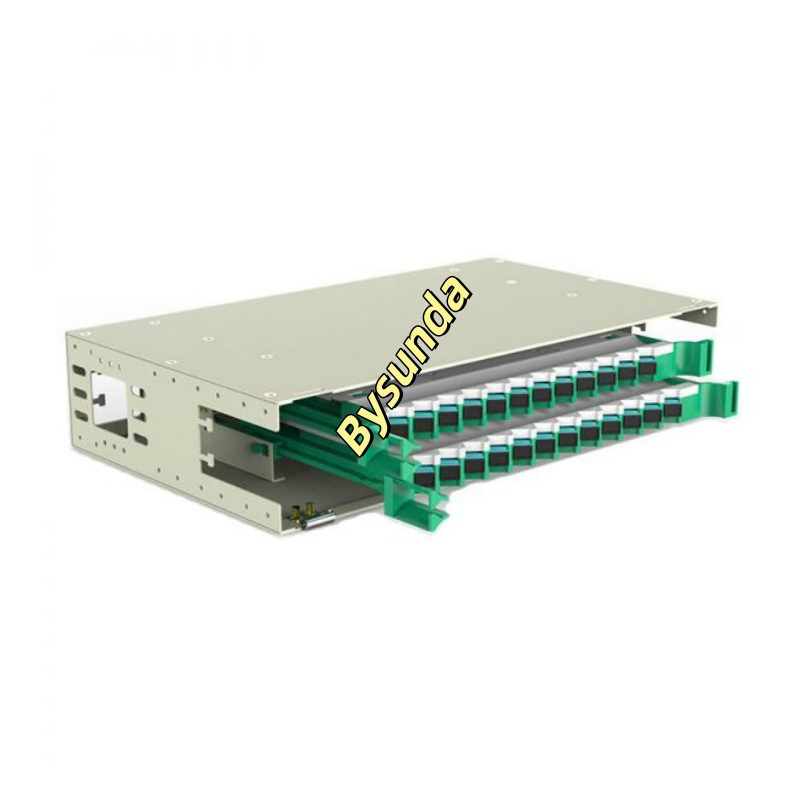

- It adopts laminated 12-core integrated splice tray, which is convenient to use.
- Card-mounted FC, SC, LC or ST (optional accessory), etc., arranged in 30 degrees to ensure the fiber The bending radius is greater than 40mm, which can avoid laser damage to the human eye and damage the eyes during fiber scheduling.
- It is suitable for the end, wiring and scheduling of various structural optical cables, and can be fed up and down (cable).
- Suitable for strip and bundle cable ends.
- There is a clear and complete fiber routing identifier.
Main Application Scenarios
- Telecom Operator Equipment Rooms: Termination and scheduling of optical cables for backbone networks and metropolitan area networks.
- Data Center (IDC): Centralized fiber cabling and management between servers and switches.
- Enterprise / Campus Intelligent Buildings: Fiber distribution areas of integrated wiring systems.
- FTTH (Fiber to the Home): Community optical distribution cabinets and building weak current rooms.
